Commander Series

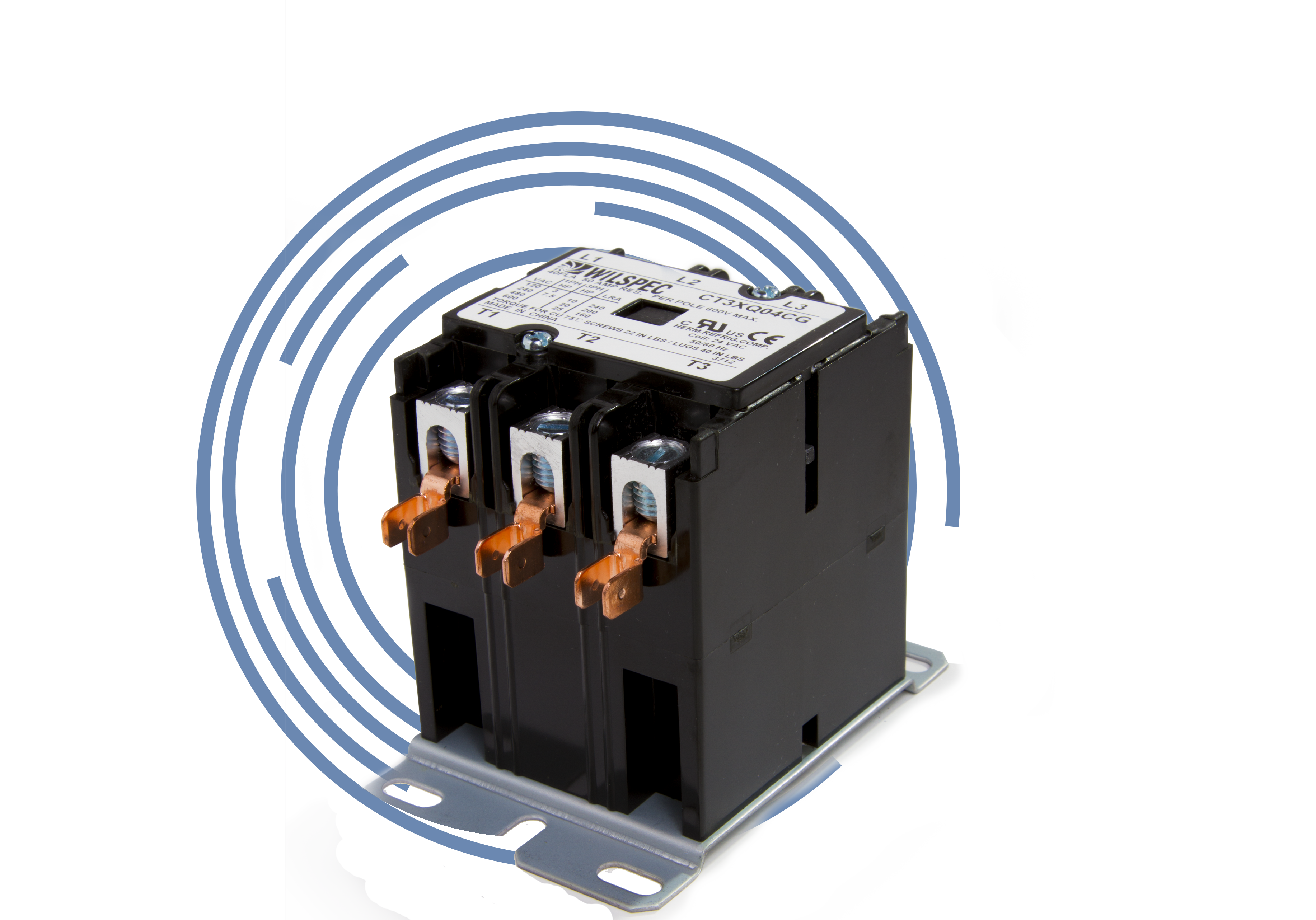

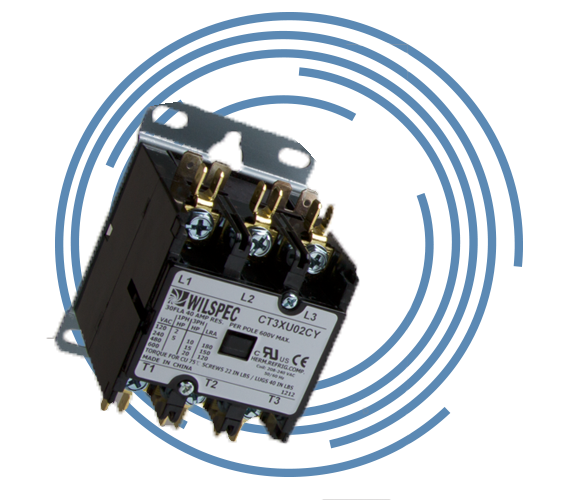

The Commander Series of contactors are designed for OEM and end user motor control applications that require a cost-effective, reliable contactor.

Engineering Excellence

The Wilspec® contactors meet the stringent safety and performance standards.  The internal construction of the CT series is manufactured from engineered compounds to provide excellent mechanical life in the most demanding applications.

iso-cert-darkcrus-cert-darkrohs-cert-dark

  • ISO 9001
  • UL 508
  • ROHS Compliant

Silver Metal Oxide contacts are used to guarantee dependable electrical performance over the life of the product. The electro-magnetic coil is specially designed to reduce power requirements in the user control system. The internal construction of the CT Series is manufactured from engineered compounds to provide excellent mechanical life in the most demanding applications.

Features:

Premium Silver Alloy contacts designed for long life
Shock-resistant actuator arms provide mechanical durability
Durable Molded Plastic Housing
Industry standard mounting plates
Compact Design, easy to install

Options:

1, 2, 3 and 4 Pole Configurations
24, 120, 240 and 480 VAC Coils
Wide range of electrical ratings
Screw, Box or Pressure Plate Connections
NEMA mounting base
NO/NC End Switch Kits

Technical Specifications:

Electrical Contact Ratings: 20 to 90 Amps
Electrical Coil Ratings: 24 to 600 VAC
Life Rating: 100,000 & 250,000 Cycle Options

Designed & Built

The Wilspec® contactors are engineered to withstand mechanical stress for the rated cycle life. The Commander Series not only meets the industry standard of 250k life cycles, but exceeds them over seven fold.

Premium materials and exceptional build means perfect contact, every time. We take pride in the reliability of our contactors – pride that we’re providing your products with the power they need. Match that reliability with our competitive costs and we know our contactors are the right solution for your system.
