Charger Series

The Charger Series ensure that you have the power you need.

Engineering Excellence

Wilspec® relays conform to high industry and product standards.

ul-cert-darkce-cert-darkrohs-cert-darkiso-cert-dark

  • UL Certified
  • CE
  • ROHS compliant
  • ISO 9001 manufacturing facilities

Our relays are built to provide long lasting service to your equipment. Built with quality material, our relays are manufactured with you in mind and to your specifications.

Wilspec® offers specially designed relays for HVAC/R systems and other industrial applications to provide reliable and long-life operation. The internal construction of the Charger Series of relays is manufactured from engineered compounds to provide excellent mechanical life in the most demanding applications. Match that reliability with our competitive cost and we know our relays are the right fit for your system.

Designed & Built

We take pride in the dependability of our relays-pride that we are providing your products with the power they need. From potential relays that control voltage during motor startup, to power relays that control small compressors, motors, heaters and auxiliary components, our designs can be counted on to handle the rigorous demands of your system.

Our relays employ the latest industry standard flame- resistant plastics and optimized electro-magnetic coils to ensure your success every time.

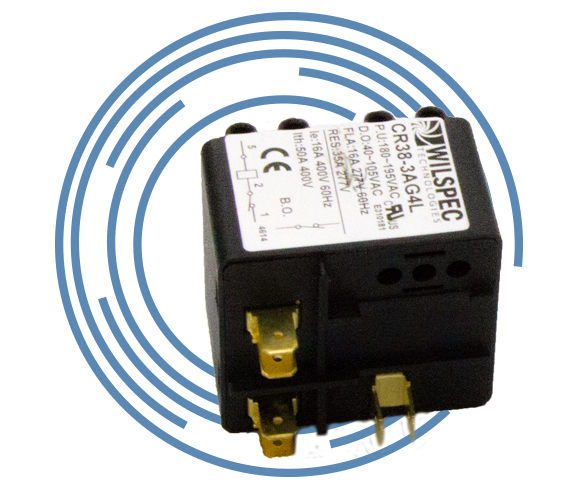

CR38 Series

Contact ConfigurationsSPNC
Contact Rating16A (Make and Break), Power Factor = 0.85
50A (High Capacity Models Only)
Frequency50/60 hz
Ambient Temperature Range-40°C to 65°C
Terminal OptionsScrew Terminals (With or Without Shunt)
Quick Connect Terminals (With or Without Shunt)
Mounting OptionsTab or Panel Mount

CR94 Series

Contact ConfigurationsDPST, DPDT, SPST
Contact Rating25A Res. 277 Vac
14 FLA 277 Vac
Frequency50/60 hz
Ambient Temperature Range-40°C to 60°C
Terminal OptionsPCB Mount or Quick Connect Terminals
Coil Options (AC)24, 120, 208/240, 277
Coil Options (DC)12, 24
Mounting OptionsPanel Mount, PCB Mount

CR84 Series

Contact ConfigurationsDPST, SPST
Contact Rating25A Res. 120/277 Vac
8 FLA 277 Vac, 16 FLA 120 Vac
Frequency50/60 hz
Ambient Temperature Range-40°C to 60°C
Terminal OptionsQuick Connect Terminals
Coil Options (AC)12, 24, 48, 120, 208/240, 277
Coil Options (DC)3, 6, 12, 24, 48, 100, 110, 200
Mounting OptionsPanel Mount

CR10 Series

Contact ConfigurationsDPST
Contact Rating30A Res. 277 Vac
20 FLA 120/240 Vac
0.75 hp, 36 Vdc
Frequency50/60 hz
Ambient Temperature Range-40°C to 65°C
Terminal OptionsSingle or Double Quick Connect Terminals
Coil Options (AC)24, 120, 208/240
Coil Options (DC)24, 36

CR72 Series

Contact ConfigurationsDPST
Contact Rating (Run Contacts)10A Res. 600 Vac, 30A Res. 277 Vac
8 FLA 600 Vac, 16 FLA 277 Vac
Frequency50/60 hz
Ambient Temperature Range-40°C to 65°C
Terminal OptionsQuick Connect Terminals, PCB Mount, Screw Terminals
Coil Options (AC)24, 120, 208/240, 277
Mounting OptionsPanel Mount, PCB Mount
