Control Series
The Control Series of Transformers can help extend the life of your products.
Engineering Excellence

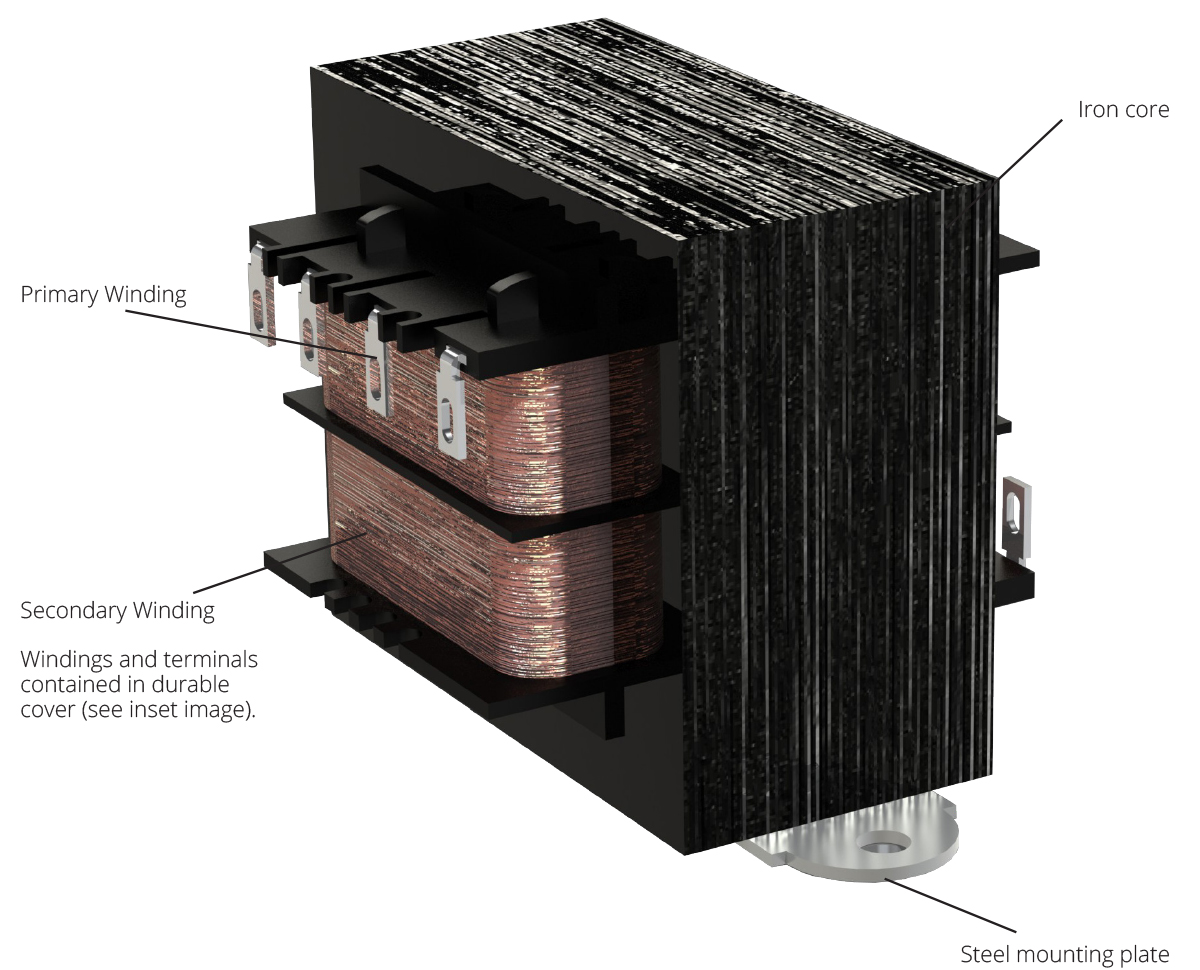

All of Wilspec®’s Transformers are designed with quality materials for a reliable field performance.

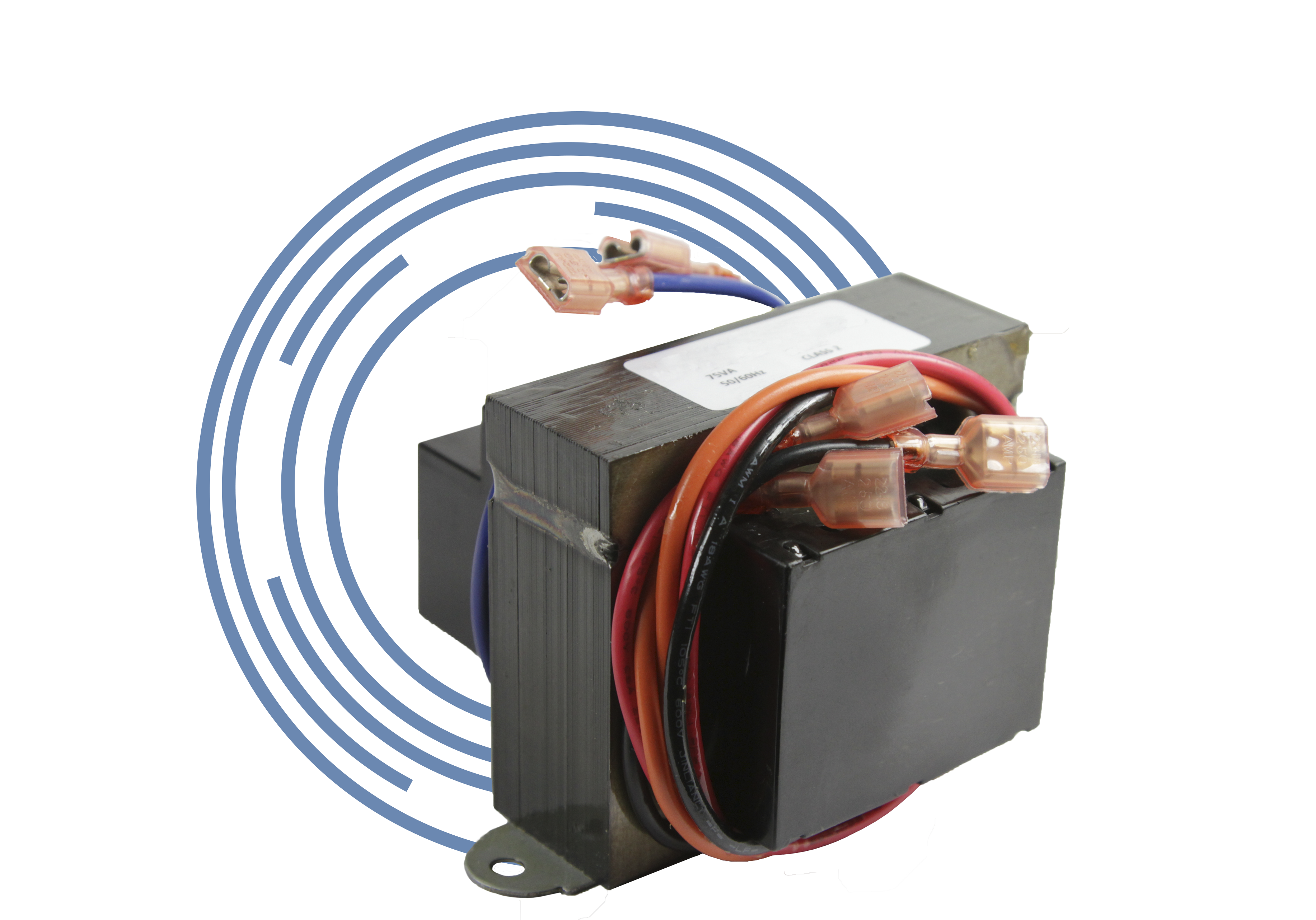

The XF Series of Transformers are the ideal solution for low-voltage control circuits.
Our lineup of Class 2 Transformers can be found in a wide range of commercial applications, from HVAC applications to food service and entertainment systems. These devices can be configured with wire leads or quick connects, and are rated for input voltage up to 600 V.
Our wide range of standard transformers make it easy for you to select the perfect control for your system, and our engineers are always on-hand to develop a custom solution.
Features & Specifications
| Mounting | Foot Mount or Panel Mount Custom mounting available |
|---|---|
| Standard Voltages | Primary: 120, 208,240, 277, 480, 120, 380, 415 Secondary: 12, 24 |
| Standard Sizes | 20, 40, 50, 75, and 100 VA Others available upon request |
| Connection Types | Wire leaded, with or without connectors Quick connect terminals PCB Mount |
| Frequency | 50/60 Hz |
| Insulation | Class B or Class F |
| Overcurrent Protection | Inherently energy limiting Non-resetting fuse Resettable circuit breaker |
